piab ejector picompact10
A compact ejector model based on Piab’s micro coax cartridges that reduces air-consumption with 30–50% compared to other ejector technologies.
\r\n
It has been developed for high speed pick-and-place applications, found in the electronics and semiconductor industry, or for handling of small parts in the metal, plastics, packaging and pharmaceutical industries.
Piab ejector with coax patented technology.
Reduced air-consumption with 30-50% compared to other ejector technologies.
Easy to optimize vacuum performance with a varied selection of micro multi-stage ejectors.
Unique low feed pressure version available, full performance from 26 psi.
Very low weight, 2.5 oz, and small footprint. The width is 10mm.
Integrated supply and release valves, vacuum sensor/switch optional.
Suitable for small objects in high-speed handling, such as surface mount machines in the electronic and semi-conductor industry.

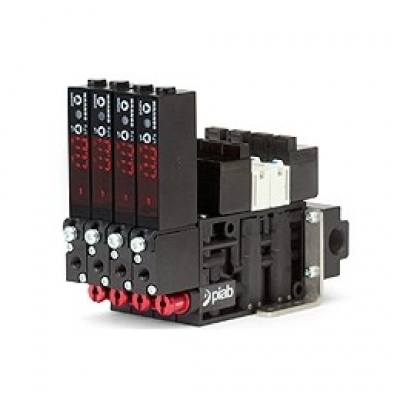

piCOMPACT10 can be purchased as a single unit or as 2–6 units mounted in a manifold with common feed pressure. As an option the piCOMPACT10 units can be equipped with a vacuum sensor or vacuum switches
