Balluff - BOS 23K

Balluff - BOS 23K

Balluff - BOS 23K

exc. VAT
inc. VAT

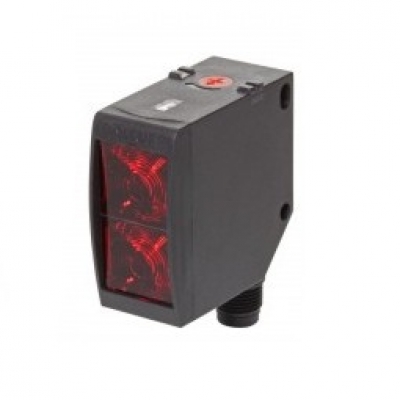

Balluff BOS 23K mid-sized block style photoelectricsensors feature conventional sensing modes of diffuse,retro-reflective and through-beam

Product Description

Load current capacity max. (Ie) 100 mA Rated operational voltage 24 DC V On Time delay (standard beam) 0.8 ms Off time delay (standard beam) 0.8 ms Ambient temperature min. -20 °C Function indication yes, yellow LED Short circuit protected yes Type Diffuse, Background suppression CadenasPath BOS 23K Current Consumption Io max. (No Load) 30 mA Length 3 50 mm Sensing face material PMMA Housing material ABS impact resistant Operating range adjustment 18-turn Potentiometer Emitter Light Source Laser, red light, Laser class 1 Supply voltage indication yes, green LED Approval CE, Ecolab Ordercode BOS017E Connection Connector S4 (M12) Switching output NPN Switching element function NO/NC Operating frequency (f) 1000 Hz Supply voltage max. 30 V Voltage ripple max. max. 10% from UB Length 1 23 mm Length 2 50 mm Ambient temperature max. +60 °C Operating range max. 1200 mm Wave length of Light Source 655 nm permissable ambient light 5000 Lux Housing Style Block Degree of protection IP IP 67 Insulation class 2 CatalogProduct yes Supply voltage min. 10 V Product Family BOS 23K Special Applications Laser Protected against polarity reversal yes Range 0...1200 mm
