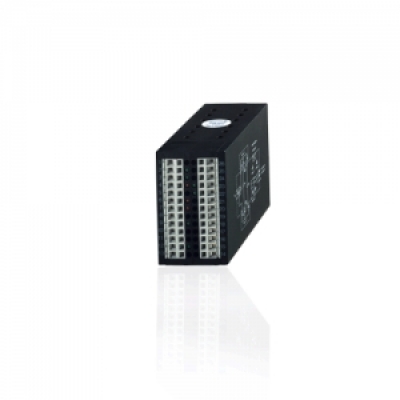

462121E101 Elobau

Elobau 462121E101 For 4/32 sensors 462121E1.1A maximum of 32 sensors may be used with an interconnection system.We recommend the use of elobau interface units 363 098 & 462 099 R.Elobau 462121E101 operating voltage 24 V AC/DC ±10% current consumption 200 mA max. switching voltage output 1,2 250 V AC/30 V DC max. switching current output 1,2 3 A max. switching power output 1,2 750/90 VA/W operating time 300 ms temperature range 0…+55°C material PA sensor inputs 4 SIL CL (EN61508) 2 PL (EN-ISO 13849-1) d Cat. (EN 954) 3 PFHd (1/h) 1,50e-9 ETL-approved yes
