Kiepe VG Misalignment Switch

Kiepe VG Misalignment Switch

Kiepe VG Misalignment Switch

exc. VAT
inc. VAT

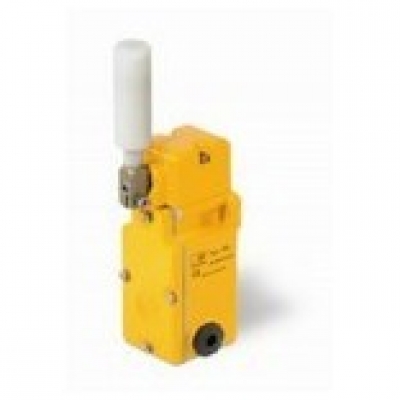

Kiepe VG Misalignment Switch\r\n\r\nHousing : Aluminum, Roller made of Polyamid\r\n\r\nConveyor belt misalignment switch Kiepe VG

Product Description

Kiepe VG Misalignment Switch Housing : Aluminum, Roller made of Polyamid\r\n\r\nconveyor belt misalignment switch VG\r\n\r\na p p l i c a t i o n\r\n\r\nKiepe Belt Misalignment Switches are used in conveyor installations\r\nfor monitoring the true running of conveyor belts. The\r\nswitches, when mounted at the running edges of a conveyor belt,\r\nwill be operated if the belt deviates from it’s designed running\r\nline by more than a permissable distance.\r\nThe switches will then stop the conveyor drive, avoiding spillage\r\nof material or damage to the plant. The Belt Misalignment\r\nSwitches can be optionally supplied with a pre-alarm position for\r\nan alert signal at slight deviation and a final cut-out and lock. All\r\nswitches are maintenance free.\r\n\r\ns e l e c t i o n t a b l e\r\n\r\nType Ref. Pre-Alarm\r\nnot included / included\r\nLatching\r\nnot included / included\r\nNo. of Contacts\r\nSwitching Point at\r\nOrder number Weight\r\nkg /each\r\n15° 45°\r\nNC NO NC NO\r\nVG 03 /5 X X 1 1 92.038 143.501 0,75\r\nVG 033 /5 X X 2 2 92.038 143.511 0,75\r\nVG 03 /6 X X 1 1 92.038 143.601 0,75\r\nVG 033 /6 X X 2 2 92.038 143.611 0,75\r\nVG 133 /6 X X 1 1 1 1 92.038 143.615 0,75\r\nSpares and Options\r\nActuating roller for type VG ∅ 25 mm 94.037 860.001\r\nSwitch element for type VG 215.15.14.01.00\r\nVentilation duct 580.00.16.01.01\r\n\r\np r o d u c t d e s c r i p t i o n\r\n\r\nThe switch enclosure consists of corrosion-resistant aluminium\r\nalloy. All external parts are either of stainless steel or have been\r\nespecially plated. The actuating roller is of polyamide. All VGtypes\r\nars fitted with snap acting switches. The actuating head is\r\nremovable from the main switch body and may be re-fitted in any\r\nof four positions. This, together with re-positioning of the switch\r\ntrip bar allows the actuating roller to operate in any of four directions\r\ngiving greater mounting versatility. All this will insure\r\nextremely safe operation, permitting to use the switch for severe\r\noperation and in outdoor installations.\r\nNo maintenance will be required. For the Models VG…/5 and 6\r\nthe switching point has been set at the manufacturer’s plant to\r\napprox. 12° from vertical and can be continuously readjusted in\r\nthe field. The Model VG…/6 switch will latch as the admissible\r\namount of out-of-line running is exceeded. It is unlatched locally\r\nby resetting the actuating roller. The VG 133/6 switch is equipped\r\nwith two snap acting switches. An alert signal will be provided\r\nat approx. 12°, the final cut-out and latch will occur at 45°. For\r\nunlatching, the actuating roller is reset by hand.\r\n\r\nT e c h n i c a l D a t a\r\n\r\nDevice complies with EN 60947-5-1\r\nEN 60204\r\nVDE 0110 - Degree of Pollution: 2 (interior), 4 (exterior)\r\nEnclosure Aluminium alloy GK-ALSi 12\r\nFinish 2 - Component DD - tile enamel, yellow\r\nFastening By means 2 oblong holes for M6 bolts\r\nCable Entry 3 x M20 x 1,5\r\nProtection IP 65 according to EN 60529\r\nRated Insulation Voltage Ui AC 380 V / DC 440 V\r\nEarthing Within Enclosure M5\r\nAdmissible Ambient Temperatures 1) - 25 °C … + 70 °C\r\nSwitching Elements Snap acting Switches\r\nNumber of Contacts 1 NC + 1 NO or 2 NC + 2 NO\r\nConventional Thermal Current Ith 10 A\r\nBreaking Capacity Ie / Ue 5 A / AC 250 V\r\nOperation per Hour 1500\r\nConnections Screw clamp terminals for a wire gauge of 2,5 mm2\r\nMechanical Life 3 x 106 Switching Cycles\r\nType of Operation Actuating Roller; with or without latch\r\nActuating Roller Polyamid 25 mm diameter\r\nSwitching Point At approx. 12° from vertical. With devices designed for pre-alarm,\r\nthis alarm will be tripped at approx. 12° without latching action,\r\nwhereas cut-out will occur at 45°, with the device then being latched\r\nExcursion 90° max.\r\nMounting Position vertical\r\nMaintenance free Options Ventilation duct to avoid condensation\r\n1) Deviating ambient temperature upon request

Ask our Experts

To contact our team of experts call 01795 473 714 or submit your enquiry
